CVXE200D Xcmg Crawler Excavator 21T Operate Weight Weichai Engine

Ask Lasest Price
Brand Name :	xcmg
Model Number :	CVXE200d
Certification :	iso ccc
Payment Terms :	L/C, T/T
Supply Ability :	500units/year
Delivery Time :	15-20days

Add to Cart

Product Details
Company Profile

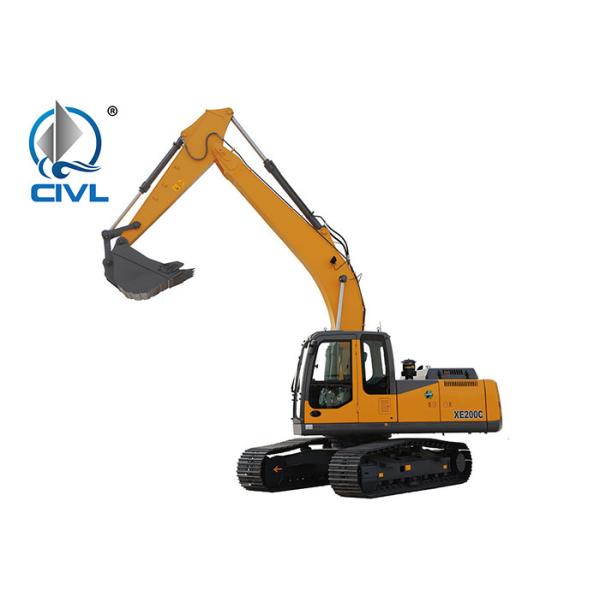

CVXE200D Xcmg Crawler Excavator 21T Operate Weight Weichai Engine

XCMG Official Manufacturer XE200D china rc hydraulic 20 tons Crawler Excavator for sale

XE200D Crawler Excavator

1,The overall layout and the axle load distribution are more reasonable to achieve better traveling stability and the maximum traveling speed is up to 40km/h to realize faster site transfer speed.
2,The domestic leading hydraulic system distribution technology features high energy-saving and efficiency.
3,The highest breakout force on the loading end is leading the industry by 15%~20% compared with like models.
4,The advanced structure and hinge points on the digging end and the industry’s largest rotating angle of the bucket ensure strong soil holding capacity.

Model	Unit	305D
Operating Weight	kg	30800
Bucket Capacity	m³	1.2-1.6
Engine Model	Engine	QSB7
Rated power/swing speed	kW/ r/min	169/2050
Torque/swing speed	N.m	895/1250
Displacement	L	6.7
Travel speed(H/L)	km/h	5.2/3.1
Grade ability	%	70
Rotary speed	r/min	9.8
Ground pressure	kPa	60
Bucket digging force	kN	198
Arm digging force	kN	138
Main pump	--	K5V140DTP
Rated flow	L/min	2×140
Main safety valve pressure	MPa	34.3/37
Pressure of pilot system	MPa	3.9
Fuel tank capacity	L	520
Hydraulic tank capacity	L	270
Engine oil capacity	L	20
Total length	mm	10645
Total width	mm	3190
Total height	mm	3410
Width of platform	mm	3050
Length of crawler	mm	4944
Total width of chassis	mm	3190
Width of crawler	mm	600
Wheel base of crawler	mm	4028
Track gauge	mm	2590
Ground clearance of counterweight	mm	1198
Min. ground clearance	mm	538
Min. rear-end swing radius	mm	3200
Max. digging height	mm	10146
Max. dumping height	mm	7180
Max. digging depth	mm	7200
Max. digging depth at the range of level 8 feet	mm	7000
Max. vertical digging depth	mm	5190
Max. digging radius	mm	10665
Min. swing radius	mm	3076

Truck series:
1. Dump trucks; cargo trucks (1-120ton)
2. Tractor trucks; (1-120 tons)
3.Tanker trucks,( water tanker and oil tanker)
4. Mixer trucks and concrete pump truck
5. Mine dump trucks( 30 tons off-road mine tipper, 50tons/70tons mine dump truck, 6x6 articualted dump trucks)
6. Off-road drive trucks( 4x4. 6x6 and 8x8 Trucks)
7. Garbage trucks( garbage compactor truck, suction trucks)
8. Truck mounted cranes(normal road truck crane, truck mounted crane)
9. Special trucks( wrecker trucks, military trucks...)
10.Semi trailers( container semi-trailer, low-bed semi-trailer, tanker trailer, dumper trailer...)
11.Truck spare parts
Machine series:
1.Wheel loader,Backhoe loader
2.Roller
3.Motor Grader
4.Bulldozer
5.Excavator
6.Crane(truck crane,crawler crane,truck mounted crane,self erecting crane)
7.Forklift and 45t contain reach stacker
8.Paver and so on
9. Spare parts
