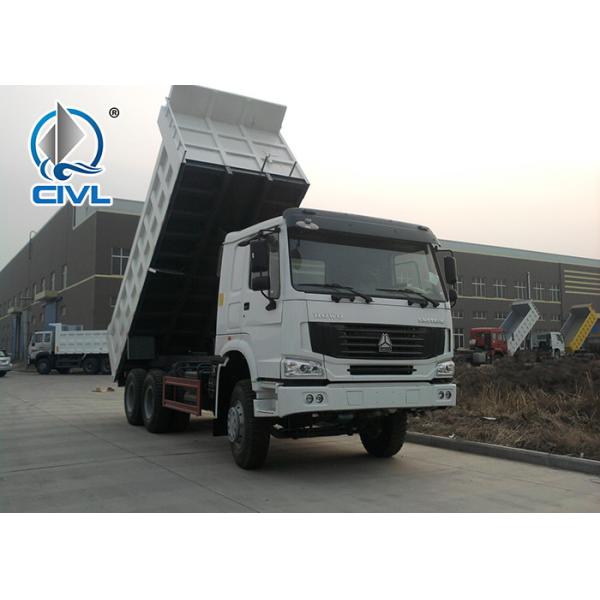

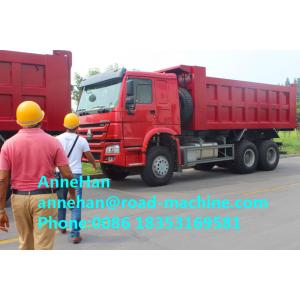

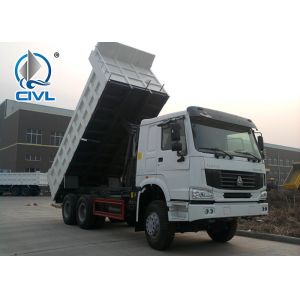

Dump Truck SINOTRUK HOWO 266HP 10 Wheels RHD 10-25CBM 30-40tons T
type lifting
Description:
Dump Truck SINOTRUK HOWO 266HP 10 Wheels RHD 10-25CBM 30-40tons T
type lifting
Since February 2010, two young technical personnel dispatched by
truck shares, the 6 consecutive month to travel overseas for more
than 10 times, the cumulative held lectures and technical advisory
services. Dozens of overseas customer service in Venezuela, two
technical personnel in order to better serve users for exporters,
they adhere to the "English as the guide, with pictures process for
the media, to learn the local language, eliminate communication
barriers, constantly learning, improve teaching methods more
intuitive, more detailed, and gradually make the Chinese heavy
truck overseas users to more accurately grasp the HOWO -A7
products, technical characteristics, structure principle, operation
essentials, maintenance tips", as the country's agent. Direct
service providers and users soon brought up a convenient
localization technology consulting and customer service service
team.
Overseas users heartfelt words through a long-distance telephone,
e-mail constantly from the other side of the ocean to China heavy
import and export company came. Two technical personnel China heavy
duty truck company, with their solid technical strength and sincere
service attitude, with Chinese heavy truck 500 HOWO heavy truck
arrived in Venezuela, Venezuela by user sincere praise.
Specification:
| Dump Truck SINOTRUK HOWO 266HP 10 Wheels RHD 10-25CBM 30-40tons T
type lifting |
| Model | ZZ3257M3247W |
| Drive Type | 6×4 |
| Engine | | WD615.87 , 290HP( Euro II) | | 6 cylinder in-line with water cooling, turbo-charging &
inter-cooling,4 stroke electronic fuel injection diesel engine | | Displacement : 9.726L |
|
| Cabin | HW76 lengthened cab(with one sleeper, air-conditioner and new-style
seat) |
| Transmission | HW13710(10 forwards & 2 reverses) |
| Front Axle | 1×HF9 ( 9 Tons) |
| Driving Axle | HC16, 16Tons |
| Steering | ZF8118 hydraulic steering with power assistance. |
| Clutch | Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air assistance |
| Rim/ Tire | 11.00R20,12.00R20,12.00R24 Radial tire |
| Wheel base | 3200+1350(mm) |
| Overall dimension | 8075×2496×3450(mm) |
| Cargo body | 5200×2300×1500(mm),Bottom:8mm, Side:6mm |
| The curb weight | 12200(Kg) |
| Gross weight | 25000 kg |
| Max. speed | 75km/h |
| Color | White, red, green, golden and so on. |
Applications:
It used for Mining industry, Construction business, docks and so
on.
Competitive Advantage:
1) competive price, cost-effective
2) reliable quality
3) good after slaes service, which can send engineers for traning
and maintainance
4) all kinds of cargo body structure can be designed and produced
according to your request,
make it have light curb weight , high rigidity , high loading
capacity
5) The optimized hydraulic control system helps to avoid wrong
operation, it has higher
safety and running efficiency.
6) low fuel consumption
7) strong enough engine
8) with all kinds of truck model, which can fulfil your
requirements
9) using the high strength steel, make it has a long service life
10) fast delivery time, we can arange production according to your
needs exactly and quickly
11) professional import and export dealing precedure, make customs
clearance more high efficiency
12) excellant apperance of cabin, safety, reliable
13) quick and efficient spare parts supply bring you more
convenient
14) you can choose cargo body with Front lifting type or Middle
lifting type which you prefered
15) The hydraulic sytem using HYVA brand or Domestic famouse brand
